EV CHARGING SOLUTION

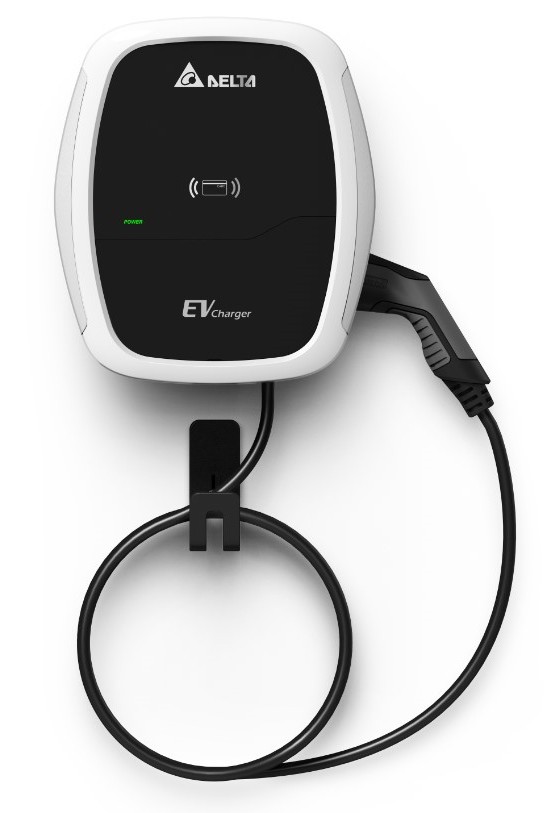

AC Charger / AC Mini Plus
Features
● Intuitive user interface
● RFID for user authentication
● Multi-communication options for backend integration
● Adjustable operating current
Small, Simple, and Smart for Home
and Commercial Charging Applications
SPECIFICATIONS
| Part Number | EVPE- |
| Power Input |
| Input Rating | 230 Vac, single phase, 16 A or 32 A maximum, 50 / 60 Hz |
| Number of Phase / Wire | L, N and PE (Ground), hardwired with terminal block |
| Standby Power * | < 6.5 W |
| Internal RCD | 30 mA RCD and DC 6 mA RCD function |
| Power Output |
| Output Rating | 230 Vac, single phase, 16 A or 32 A maximum, 50 / 60 Hz 3.68 kW or 7.4 kW maximum |
| Charging Interface* | (1) IEC 62196-2 Type 1 or Type 2 tethered plug, 5 m cable (2) IEC 62196-2 Type 2 Socket |
| Protection |
| Upstream | In accordance with local regulations |
| Electrical Protection | Over current, Under voltage, Over voltage, Residual current detection, Surge protection, Short circuit, Over temperature, Ground fault, Plug-out protection |
| Cold-Load Pickup | Randomized delay before charge resume after power failure |
| Automatic Recovery After Nuisance Trip |
The EVSE will automatically resume charging after a minor fault such as OVP, UVP, OTP or OCP. No user intervention required. |
| User Interface & Control |
| Status Indicators | Power, Status, Charge, Fault |
| Buttons and Switch* | Key switch, On/Off switch, Reset button, Emergency stop button |
| Charger Configuration | Charging Current Adjustment |
| Communication |
| Network Interface | Ethernet (standard), WLAN (option), 3G (option) |
| Charging Protocol | OCPP |
| Environment |
| Operating Temperature | -30ºC to +50ºC (-22 ºF to +122ºF) |
| Storage Temperature | -40ºC to +80ºC (-40 ºF to +176ºF) |
| Humidity | < 95% relative humidity, non-condensing |
| Altitude | Up to 2,000 m (6,000 ft.) |
| Mechanical Design |
| Ingress Protection | IP55 |
| Enclosure Protection | IK08 according to IEC 62262 |
| Cooling | Natural cooling |
| Dimension (W x H x D) / Weight | 318 x 363 x 136 mm (12.6 x 14.3 x 5.4 inch), excluding charging cable, mounting plate and cable holder, 3.7kg (8.2 lbs), without package |
| Regulation |
| Certificate / Compliance | CE, IEC 61851-1, IEC 61851-2 |
*Depends on model configuration. Specifications are subject to change without notice.
